Pearl Liquid Analyser | Fast Liquid FTIR

‘Oyster cell’ alternative to conventional IR liquid cell.

Pearl

Features

  • Easiest liquid FTIR sampling system available
  • Faster and more reliable than traditional liquid cells, saving time and money
  • Very accurate and repeatable pathlengths, including the option of wedging to eliminate troublesome fringing
  • Various pathlengths and window materials, which can be changed in seconds
  • Handles viscous materials with ease
  • Easy sample injection & Clean-up
  • Sliding tray gives consistent pathlength
  • Suitable for viscous liquid and paste analysis
  • Parallel/wedged windows option to match your requirements

Fast liquid FTIR transmission accessory

This new accessory greatly reduces the time and difficulty of liquid sample analysis.

The Pearl™ is a high specification liquid transmission accessory designed for laboratory spectroscopic sample analysis in the Near and Mid-Infrared. The accessory contains Specac’s innovative Oyster Cell assembly which holds your sample in a horizontal plane.

The design of the Pearl™ and Oyster Cell allows for fast and easy application of the sample, and for cleaning between samples.

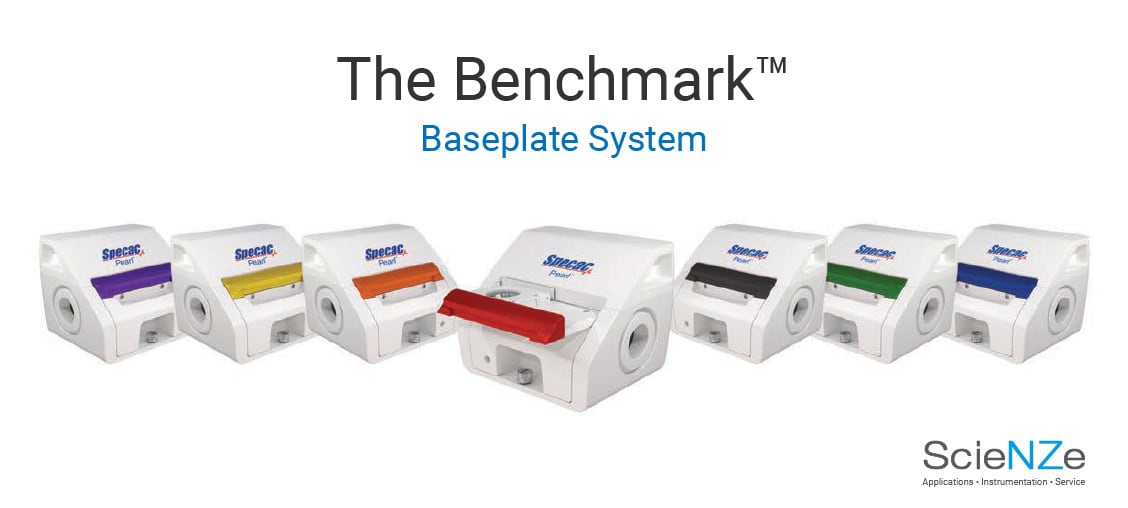

PearlBenchmarkSystem1128
SpeacPearl11281
SpeacPearl11282
SpeacPearl11283

Analyse volatile liquids using transmission spectroscopy

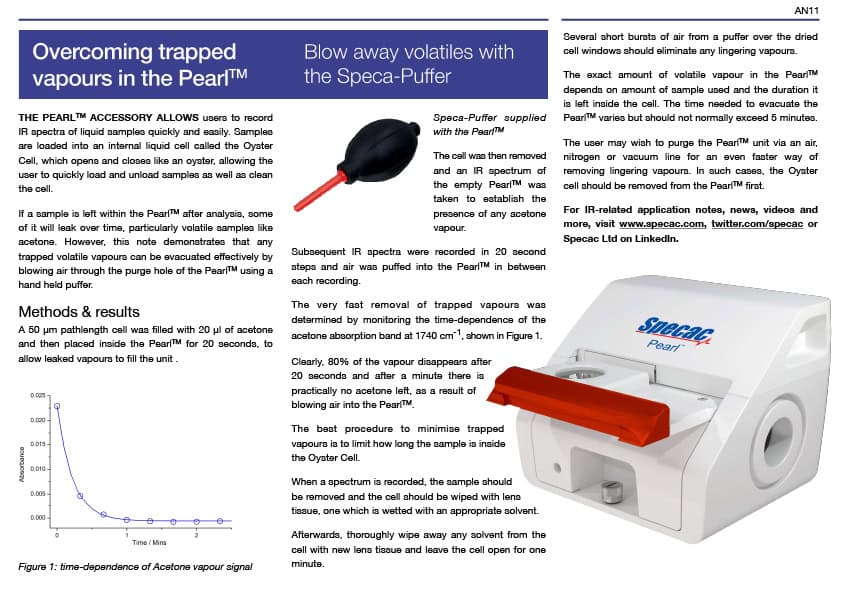

For more volatile samples, there is an injection access port in the top Oyster, so the cell assembly does not have to be fully opened. At all times, the sample can be viewed through the two windows, allowing the user to ensure that no bubbles have been trapped.

The Oyster Cell can be cleaned very easily and quickly using tissue and an appropriate solvent.

Accurate transmission pathlength

The Pearl™ has been designed to provide a more accurate pathlength than can be achieved when using a traditional liquid transmission accessory, with pathlengths repeatable to significantly less than 1μm thanks to the innovative Oyster Cell.

The Oyster Cells have the unique feature of being offered as either parallel or wedged cells to eliminate troublesome fringing patterns.



Accurate transmission pathlength

The Pearl™ has been designed to provide a more accurate pathlength than can be achieved when using a traditional liquid transmission accessory, with pathlengths repeatable to significantly less than 1μm thanks to the innovative Oyster Cell.

The Oyster Cells have the unique feature of being offered as either parallel or wedged cells to eliminate troublesome fringing patterns.

Interchangeable FTIR transmission windows

Pearl™ can be fitted with ZnSe or CaF2 windows which can be interchanged in seconds. These Oyster Cells are available in six pathlengths, 25μm 50μm, 100μm, 200μm, 500μm and 1,000μm.

Request a quote for the Pearl accessory

For a Pearl FTIR transmission accessory price, contact us for a free quote.

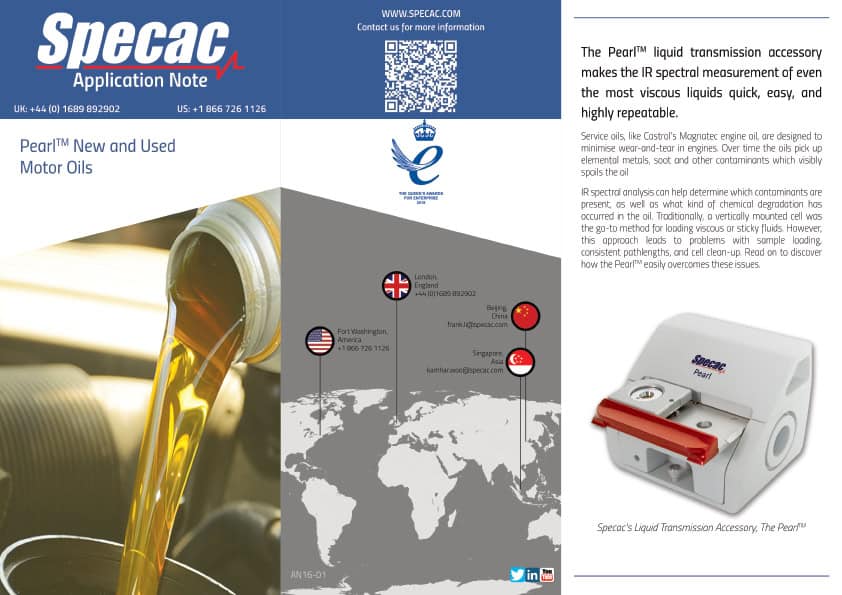

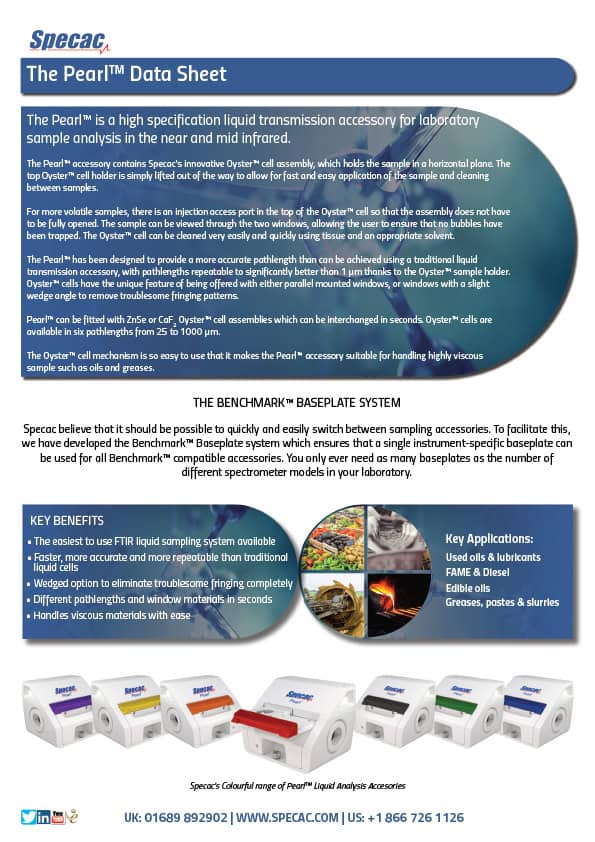

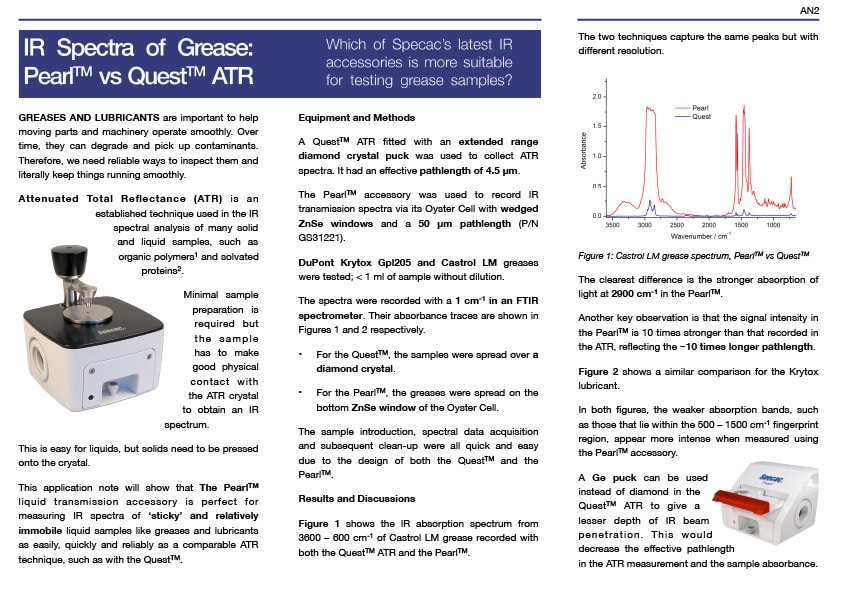

Pearl Liquid Analyser Application Notes
