Rapid Measurement of Alcohol Content by Percentage (%) in Wine

Ebulliometer Smart Bulteh

Rapid Measurement of Alcohol Content by Percentage (%) in Wine

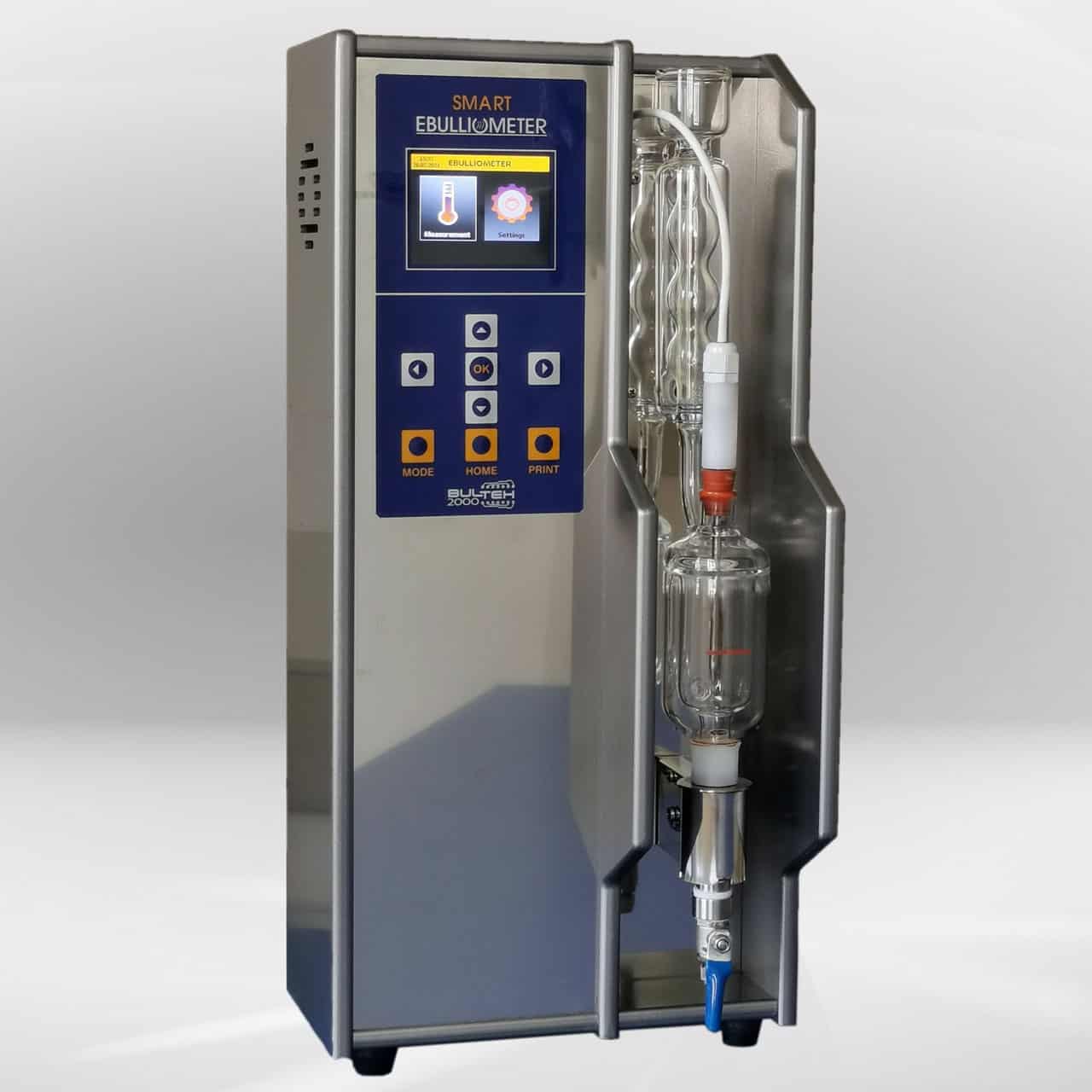

SMART Ebulliometer is a newly designed instrument for fully automated measurement of alcohol content percentage (%) in wine. The built-in high precision digital temperature sensor, high precision atmospheric pressure sensor and automatic boiling temperature determination algorithm avoid the needs of manual water measurement and tracking of the measurement process. Due to the process automation SMART Ebulliometer is extremely easy for use and can be operated by inexperienced personnel providing very fast and accurate measurement.

Measurement Fast Facts

Quantity of sample measured (cleaning and analysis) - approx. 150 ml

Time per measurement < 6 minutes

SMART & Fully Automated Alcohol Analyser



  • Fully automated
  • Automatic power control
  • No consumables required
  • Automatic boiling temperature determination
  • Automated atmospheric pressure measurement
  • Automatic alcohol contents calculation
  • Separate alcohol correction for different wine types
  • RS 232 Interface
  • Built-in firmware update system
  • Data collection system

Alcohol Analyser Measuring Parameters



Alcohol Volume Measurement
Range:  1-15%   15 - 25%
Resolution:  0.01%   0.01%
Repeatability:  ±0.05%   ±0.1%
Accuracy:  ±0.1%   ±0.2%

Boiling Point Measurement
Range:   50-105°C
Resolution:   0.01°C
Repeatability:   ±0.02°C
Accuracy:   ±0.1°C

Atmospheric Pressure Measurement
Range:   700 - 1100 hPa
Resolution:   ±0.1 hPa
Repeatability:   ±0.2 hPa
Accuracy:   ±0.3 hPa

Alcohol Analyser General Specifications



Operational Conditions
Ambient air temperature:   15° - 35°C
Relative ambient humidity:   30 - 80%
Temperature of sample measured:   10°C to 45°C

Power Supply
AC Power Supply voltage:   220V/110V   +10/-15%   50/60 Hz
Power Consumption:   <200 VA

Physical Specifications
Dimensions (WxDxH):   485 x 230 x 220 mm
Weight:   6 kg
